WA'S BEST RANGE OF PORTABLE HOMES
9–10 WEEKS LEAD TIME
EASY FINANCE
WARRANTY COVER

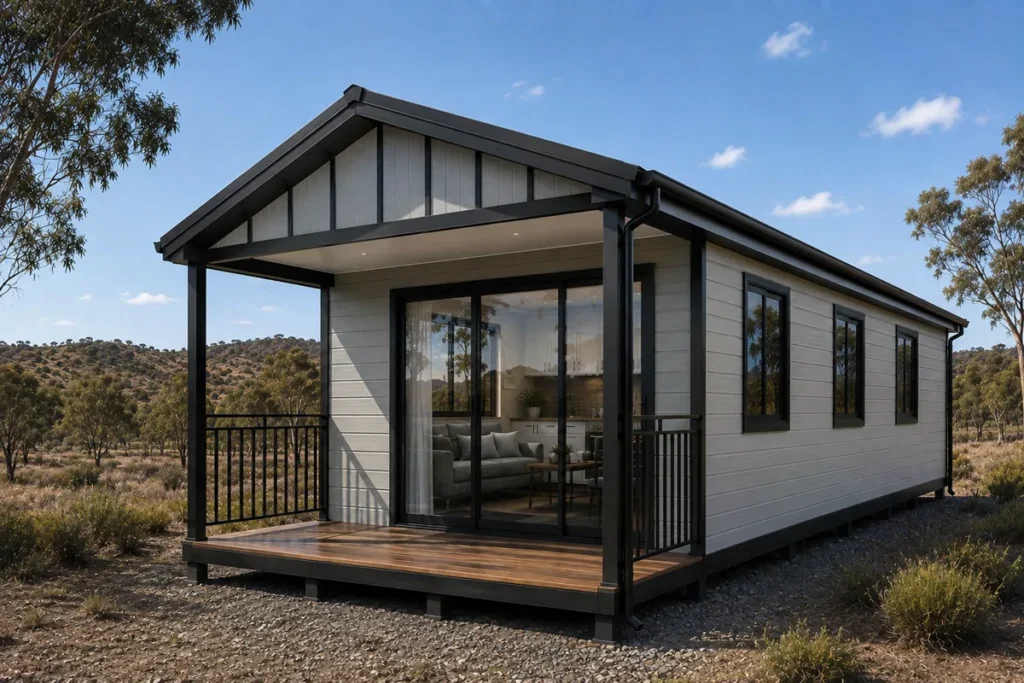

A permanent home, engineered and approved.
Built to Class 1A standard for a fixed site — not a movable or trailer-based product. Full planning, soil testing, engineering and CDC documentation is included, with optional Shire submission assistance above.

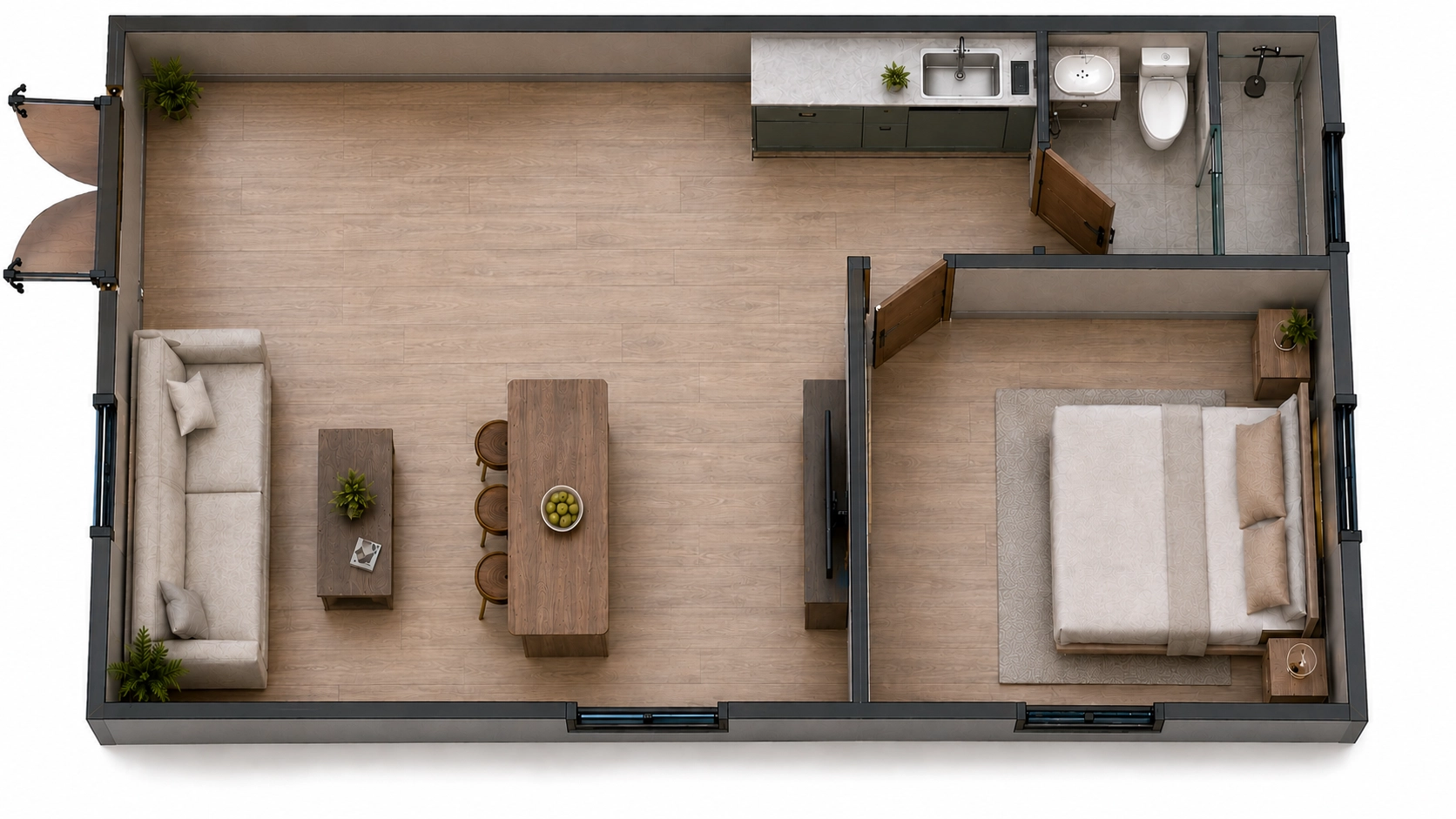

Livingroom
Kitchen
Bedroom
Bathroom Choose your bedroom layout.
Premium as standard.
7-star energy rating
Thermally efficient build to a 7-star equivalent rating.
Double glazing
Double-glazed windows throughout for comfort and noise control.
Full window façade
Floor-to-ceiling glazing across the main living space.
Stone benchtops
Kitchen fitted with a stone benchtop as standard.
Kitchen & bathroom
Kitchen and bathroom (with laundry) installed and ready to use.
Full roof & 2m verandah
Complete roof with a 2m verandah and eco decking.
Note: For additional cost
Planning & engineering
Planning, drawing, soil test, engineering, energy report and CDC included.
Note: For additional cost
A closer look, room by room.
Bright open-plan lounge with room to spread out.
Beige sofa sits along one wall facing a wall-mounted TV and dark wood console, with a low coffee table and floor plant filling the centre.
- Beige fabric sofa with cushions
- Wall-mounted TV on wood console
- Low timber coffee table
- Two aluminium-framed sliding windows
- Round recessed ceiling lights
- Wood-look laminate flooring
Queen bedroom finished in warm timber tones
Timber bed frame centred against the back wall, matching bedside table and lamp on each side, woven rug anchoring the floor.
- Timber-frame queen bed
- White bedding, olive throw accent
- Two matching timber bedside tables
- Ceramic lamps either side
- Sliding window above bed
Long galley-style kitchen counter.
Cabinetry runs the length of one wall in light grey with brass handles, topped with a timber benchtop and centred on a double stainless sink.
- Light grey cabinet run, brass handles
- Double-bowl stainless steel sink
- Gooseneck mixer tap
- Timber-look benchtop
- Wide black-framed sliding window
Specifications and materials.
Everything you need to check fit, compliance and site requirements.
Dimensions & Area
| Floor area | 9m*4.5m |
| Ceiling height | 2400mm |
| Bed configurations | 1-2 |
Frame & Structure
| Frame | Engineered steel/timber frame construction, rated for permanent siting |
| Floor | Structural floor system over engineered bearers and joists |
| Walls | Insulated wall panel system to Class 1A standard |
| Roof | Full pitched or skillion roof with 2m verandah and eco decking |
Insulation, Doors & Glazing
| Windows & doors | Double glazed, smoke alarms AS3786 compliant |
| Floor insulation | 40mm boards, AS4859.1:2018 R1.75 |
| Wall & roof insulation | Insulated to a 7-star equivalent thermal rating, Insulated panels thermal performance year-round on its own |
Electrical
| Wiring | Certified copper cabling to AS3000 Australian Standards |
| Main switch | Main isolator switch with dedicated lock-out |
| Circuit protection | RCD/MCB protection across every circuit |
| Lighting | LED downlights pre-installed in every room |
Plumbing
| Hot & cold water | Pre-plumbed to kitchen and bathroom, ready to connect on site |
| Grey water | PVC line from kitchen and bathroom to a single outlet point |
| Toilet waste | PVC line exiting through the wall with a P-trap configuration |
Approvals
| Certification | CDC (Complying Development Certificate) |
| Addinal add-on | Shire submission assistance via our approval partner — fixed fee, no hidden charges Planning, drawing, soil test, engineering, energy report |
Pick your finishes.
Select your cladding, frame, flooring, benchtop, cabinetry and vanity — we'll carry your choices straight through to your quote.
Ask us for our brochure to see the many other cladding options available.
Brochure & floor plans.
Bring Ancillary home.
Tell us about your site and we'll recommend the right model, size and layout — with a prompt, no-obligation quote.
