WA'S BEST RANGE OF PORTABLE HOMES
9–10 WEEKS LEAD TIME
EASY FINANCE
WARRANTY COVER
A permanent home, engineered and approved.
Built to Class 1A standard for a fixed site — not a movable or trailer-based product. Full planning, soil testing, engineering and CDC documentation is included, with optional Shire submission assistance above.
Bedroom
Kitchen
Full bathroom
Bathroom vanity
Sloped/Gable Roof Choose your bedroom layout.
Premium as standard.
7-star energy rating
Thermally efficient build to a 7-star equivalent rating.
Double glazing
Double-glazed windows throughout for comfort and noise control.
Full window façade
Floor-to-ceiling glazing across the main living space.
Stone benchtops
Kitchen fitted with a stone benchtop as standard.
Kitchen & bathroom
Kitchen and bathroom (with laundry) installed and ready to use.
Full roof & 2m verandah
Complete roof with a 2m verandah and eco decking.
Note: For additional cost
Planning & engineering
Planning, drawing, soil test, engineering, energy report and CDC included.
Note: For additional cost
A closer look, room by room.
Comfortable queen bedroom.
The bedroom offers a cozy, light-filled retreat with a full-height sliding glass door opening onto the outdoors. Designed for comfort and simplicity, the space balances functionality with a relaxed, resort-style feel.
- Queen-size bed with upholstered base
- Full-height sliding glass door with flyscreen access
- Wall-mounted split-system air conditioning
- Timber-look vinyl plank flooring
- Vertical shiplap wall panelling for a warm, textured finish
Galley-style kitchen.
The kitchen is a compact galley layout that maximises bench space and storage while keeping the footprint efficient. A breakfast bar extension adds casual seating without compromising the walkway.
- L-shaped layout with upper and lower white shaker-style cabinetry
- Laminate stone-look benchtop with matching splashback
- Stainless steel sink with gooseneck mixer tap
- Breakfast bar overhang with bar stool seating
- Full-height sliding glass door for natural light and outdoor access
Complete ensuite bathroom.
The bathroom is fitted out with a clean, minimal design featuring a freestanding vanity and full sanitary fixtures, finished with a mirrored storage cabinet and natural light from an awning window.
- Freestanding vanity unit with rectangular vessel basin
- Mirrored cabinet storage above vanit
- Chrome gooseneck mixer tap
- Close-coupled ceramic toilet suite
- Awning-style window with black aluminium frame
- Exhaust fan for ventilation
- Timber-look vinyl plank flooring
Sloped/Gable Roof
The gable design channels rainwater efficiently through its dual-slope form, adds a protective insulating layer above the ceiling space, and gives the cabin a crisp, well-defined exterior silhouette.
- Classic gable roofline with two sloped sides meeting at a central ridge, giving the cabin a sharp, defined triangular profile on the end walls
- Dark steel roof sheeting for durability and weather protection, finished with clean white fascia and gutter trim
- Enhances the unit's overall exterior proportion and gives it a refined, architectural street presence
- Integrated guttering along the eaves for organized rainwater runoff
- Extra insulating layer built into the roof structure, boosting both thermal comfort and sound dampening
Specifications and materials.
Everything you need to check fit, compliance and site requirements.
Dimensions & Area
| Floor area | 9*2.3m |
| Ceiling height | 2400mm |
| Bed configurations | 1 |
Frame & Structure
| Frame | Engineered steel/timber frame construction, rated for permanent siting |
| Floor | Structural floor system over engineered bearers and joists |
| Walls | Insulated wall panel system to Class 1A standard |
| Roof | Full pitched or skillion roof with 2m verandah and eco decking |
Insulation, Doors & Glazing
| Windows & doors | Double glazed, smoke alarms AS3786 compliant |
| Floor insulation | 40mm boards, AS4859.1:2018 R1.75 |
| Wall & roof insulation | Insulated to a 7-star equivalent thermal rating, Insulated panels thermal performance year-round on its own |
Electrical
| Wiring | Certified copper cabling to AS3000 Australian Standards |
| Main switch | Main isolator switch with dedicated lock-out |
| Circuit protection | RCD/MCB protection across every circuit |
| Lighting | LED downlights pre-installed in every room |
Plumbing
| Hot & cold water | Pre-plumbed to kitchen and bathroom, ready to connect on site |
| Grey water | PVC line from kitchen and bathroom to a single outlet point |
| Toilet waste | PVC line exiting through the wall with a P-trap configuration |
Approvals
| Certification | CDC (Complying Development Certificate) |
| Addinal add-on | Shire submission assistance via our approval partner — fixed fee, no hidden charges Planning, drawing, soil test, engineering, energy report |

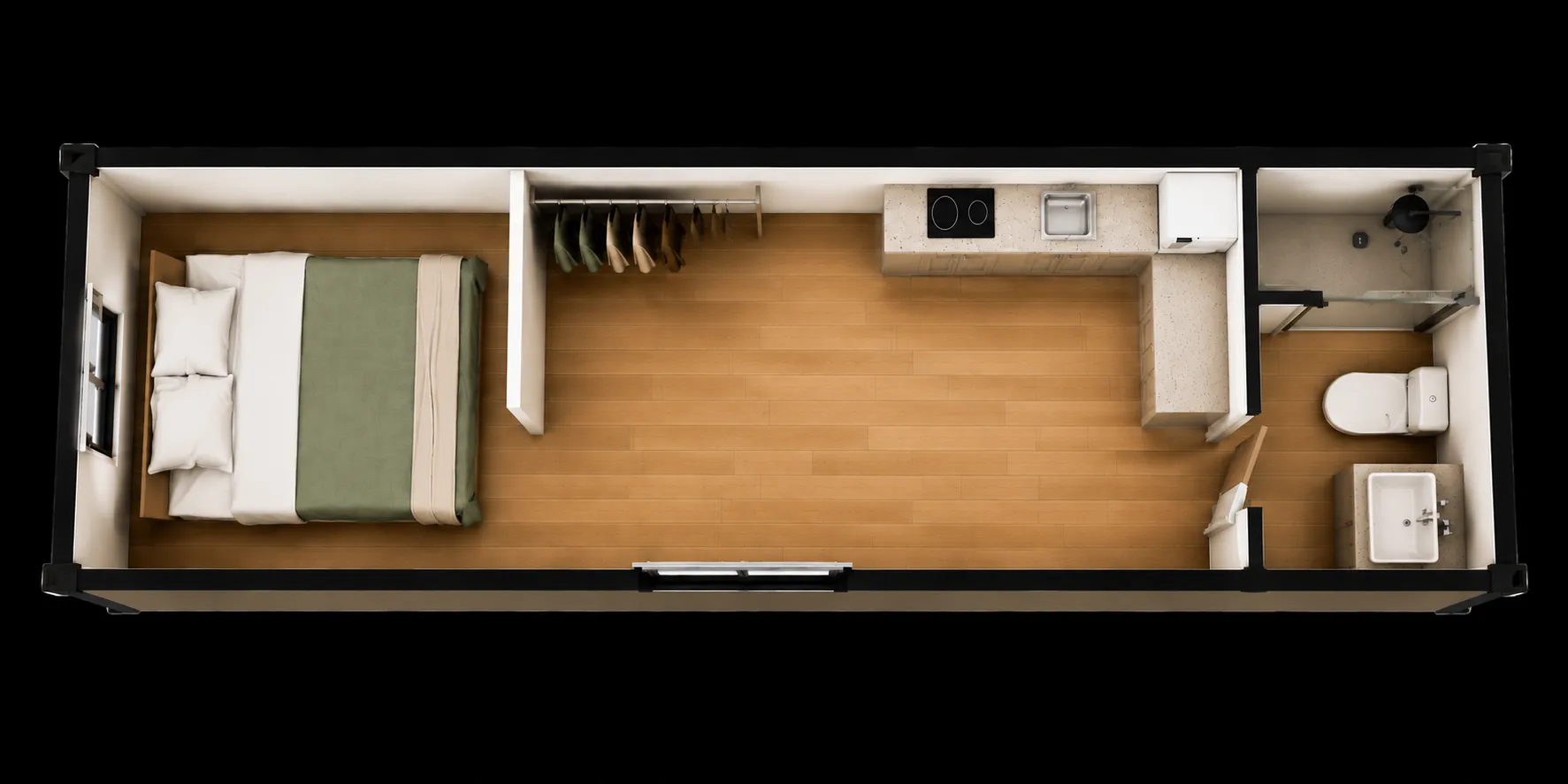

Brochure & floor plans.
Pick your finishes.
Select your cladding, frame, flooring, benchtop, cabinetry and vanity — we'll carry your choices straight through to your quote.
Ask us for our brochure to see the many other cladding options available.
Bring Marlo home.
Tell us about your site and we'll recommend the right model, size and layout — with a prompt, no-obligation quote.
