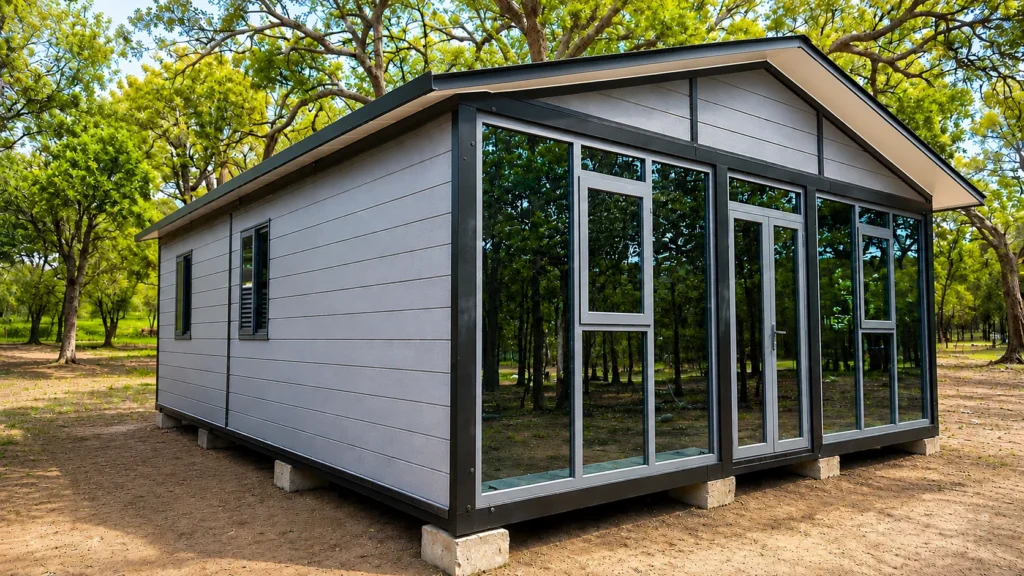

A permanent home, engineered and approved.
Built to Class 1A standard for a fixed site — not a movable or trailer-based product. Full planning, soil testing, engineering and CDC documentation is included, with optional Shire submission assistance above.
Living Room
Kitchen
Bathroom
Master Bathroom
second room
Bedroom entries Choose your bedroom layout.
Premium as standard.
7-star energy rating
Thermally efficient build to a 7-star equivalent rating.
Double glazing
Double-glazed windows throughout for comfort and noise control.
Full window façade
Floor-to-ceiling glazing across the main living space.
Stone benchtops
Kitchen fitted with a stone benchtop as standard.
Kitchen & bathroom
Kitchen and bathroom (with laundry) installed and ready to use.
Full roof & 2m verandah
Complete roof with a 2m verandah and eco decking.
Note: For additional cost
Planning & engineering
Planning, drawing, soil test, engineering, energy report and CDC included.
Note: For additional cost

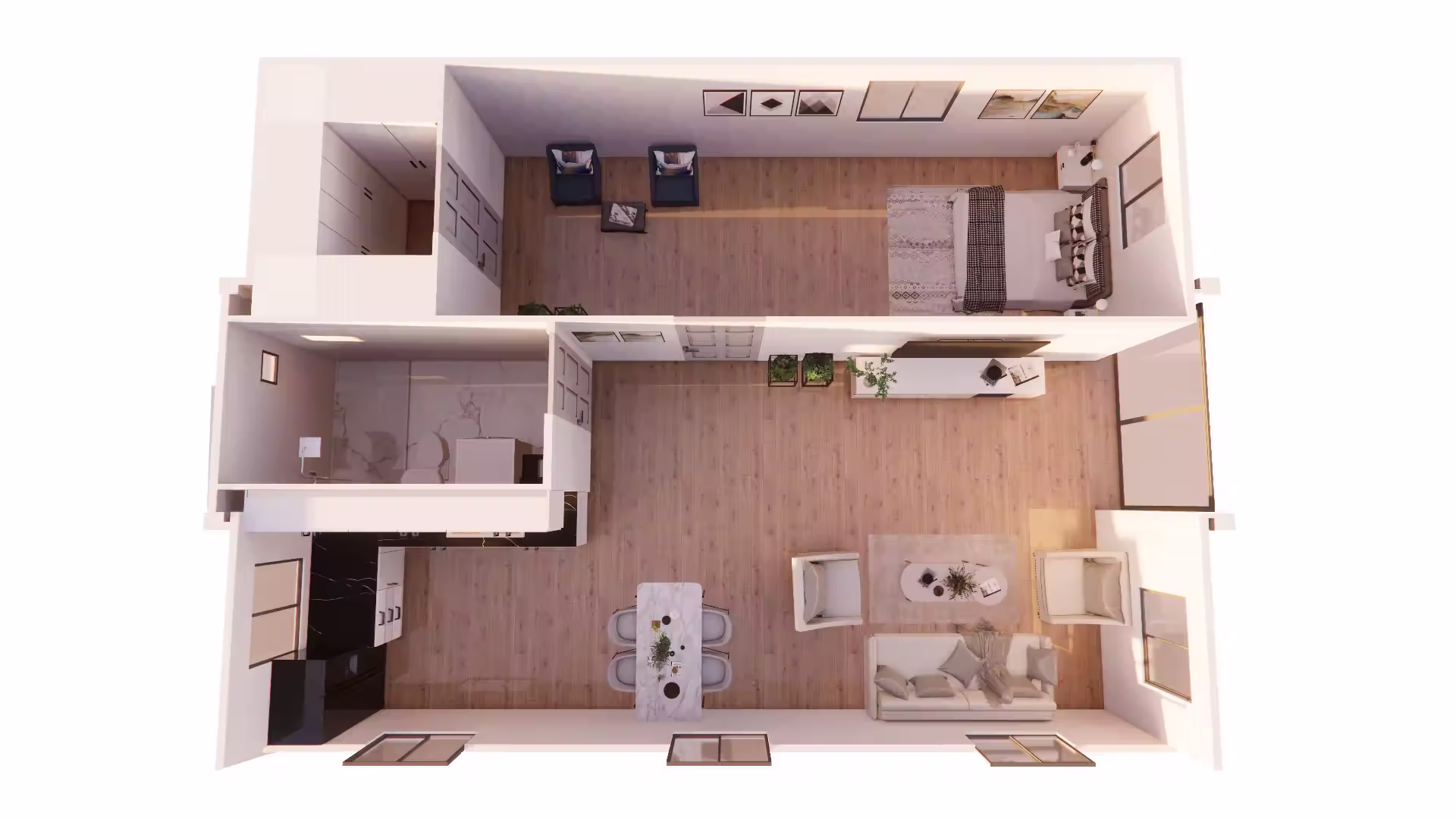

A closer look, room by room.
Living and dining, opened up to a private terrace.
A dedicated dining zone sits beside the kitchen, with the living area opening onto a covered terrace — extra usable space without extra footprint.
- Covered terrace off the main living area
- Open dining zone seating up to 6
- Insulated panel construction, 7-star equivalent rating
- LED lighting throughout
Warm, functional kitchen for everyday family meals.
U-shaped layout with generous stone bench space, wrapped in soft cream cabinetry and matte black fixtures.
- Full-size cooktop and rangehood
- Stone benchtop with tiled splashback
- Double-bowl sink with pull-down mixer tap
- Floor-to-ceiling pantry storage
- Overhead and under-bench cabinetry throughout
One well-appointed bathroom for the whole home.
A single bathroom serves the home regardless of layout, with a full shower, vanity and toilet, plus a separate laundry connection.
- Shower with glass screen
- Vanity with cabinet
- Toilet and laundry connection
- Exhaust fan
- WaterMark-compliant fixtures
Specifications and materials.
Everything you need to check fit, compliance and site requirements.
Dimensions & Area
| Floor area | 6.8x9m |
| Ceiling height | 2400mm |
| Bed configurations | 1-3 |
Frame & Structure
| Frame | Engineered steel/timber frame construction, rated for permanent siting |
| Floor | Structural floor system over engineered bearers and joists |
| Walls | Insulated wall panel system to Class 1A standard |
| Roof | Full pitched or skillion roof with 2m verandah and eco decking |
Insulation, Doors & Glazing
| Windows & doors | Double glazed, smoke alarms AS3786 compliant |
| Floor insulation | 40mm boards, AS4859.1:2018 R1.75 |
| Wall & roof insulation | Insulated to a 7-star equivalent thermal rating, Insulated panels thermal performance year-round on its own |
Electrical
| Wiring | Certified copper cabling to AS3000 Australian Standards |
| Main switch | Main isolator switch with dedicated lock-out |
| Circuit protection | RCD/MCB protection across every circuit |
| Lighting | LED downlights pre-installed in every room |
Plumbing
| Hot & cold water | Pre-plumbed to kitchen and bathroom, ready to connect on site |
| Grey water | PVC line from kitchen and bathroom to a single outlet point |
| Toilet waste | PVC line exiting through the wall with a P-trap configuration |
Approvals
| Certification | CDC (Complying Development Certificate) |
| Addinal add-on | Shire submission assistance via our approval partner — fixed fee, no hidden charges Planning, drawing, soil test, engineering, energy report |
Pick your finishes.
Select your cladding, frame, flooring, benchtop, cabinetry and vanity — we'll carry your choices straight through to your quote.
Ask us for our brochure to see the many other cladding options available.
Brochure & floor plans.
Bring Horizon home.
Tell us about your site and we'll recommend the right model, size and layout — with a prompt, no-obligation quote.
